Facebow registration (Fig. 2) is an in-

dispensible part of these patient data.

The cranium-axis relationship of the

upper jaw can be transferred to the

articulator and articulated (Fig. 15 and

16) with the aid of the facebow regis-

tration. Once the dental technician

finds the centric occlusion using the

centric relationship (Fig. 7) and can

thus eliminate interfering high spots,

there is nothing in the way of fabrica-

ting a functional restoration.

With the aid of the dynamic bite re-

gistration (Fig. 3 to 6) the individual

values of the inclination of condylar

guidance (Fig. 19) and Bennett ang-

le (Fig. 20 and 21) can also be indi-

vidually programmed on the articu-

lator.

A functioning articulator in the CAD

software provides the user with the

possibility of already incorporating all

the functional procedures in the resto-

ration using these parameters during

the design.

From analogue to digital

The dental technician already lays the

foundations for a fitting, functioning

restoration during model fabrication

(Fig. 9 to 11). With the segmented mo-

dels and the resulting expansion cont-

rol (Fig.12 to 14), the technician can

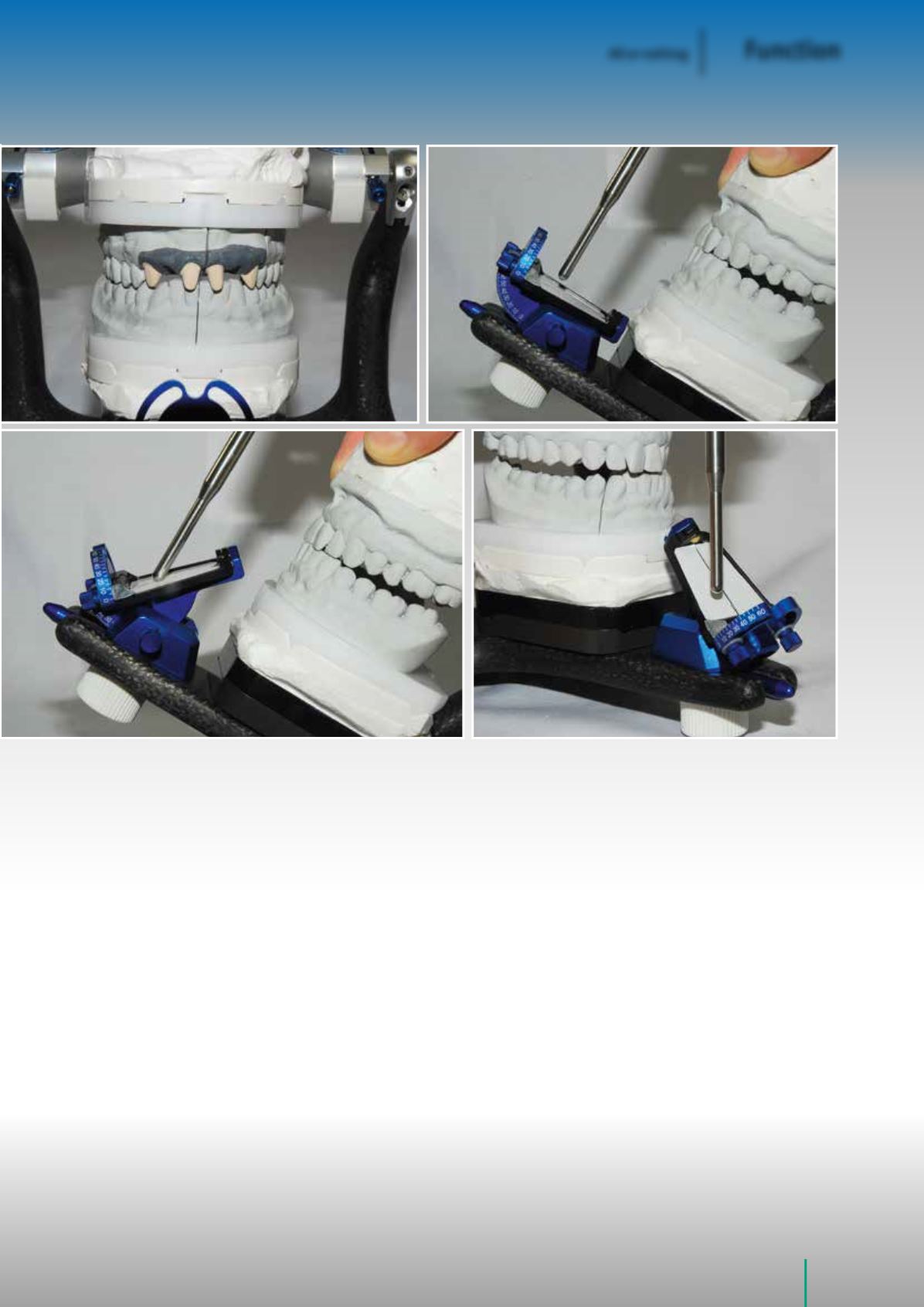

Fig. 22 Frontal view of the working model situation in the Artex CR

Fig. 23 Determination of the angle of the incisal guidance using the

incisal guidance unit

Fig. 24 The readable value of the incisal guidance angle: 46 degrees

Fig. 25 Determination of the canine guidance, left
