All or nothing Function
The models can be accessed from here
for the CAD software and made availa-
ble for the design (Fig. 20). If the dental
technician has selected the Artex CR in
the database under the scanmode, the
CAD software automatically starts with
the virtual articulator. The design is
accompanied by the virtual helper,
Ceramill Mind Wizard, which guides
the operator logically through the indi-
vidual tools. Trained and experienced
users, however, have the possibility of
individually intervening in the design
at any stage.

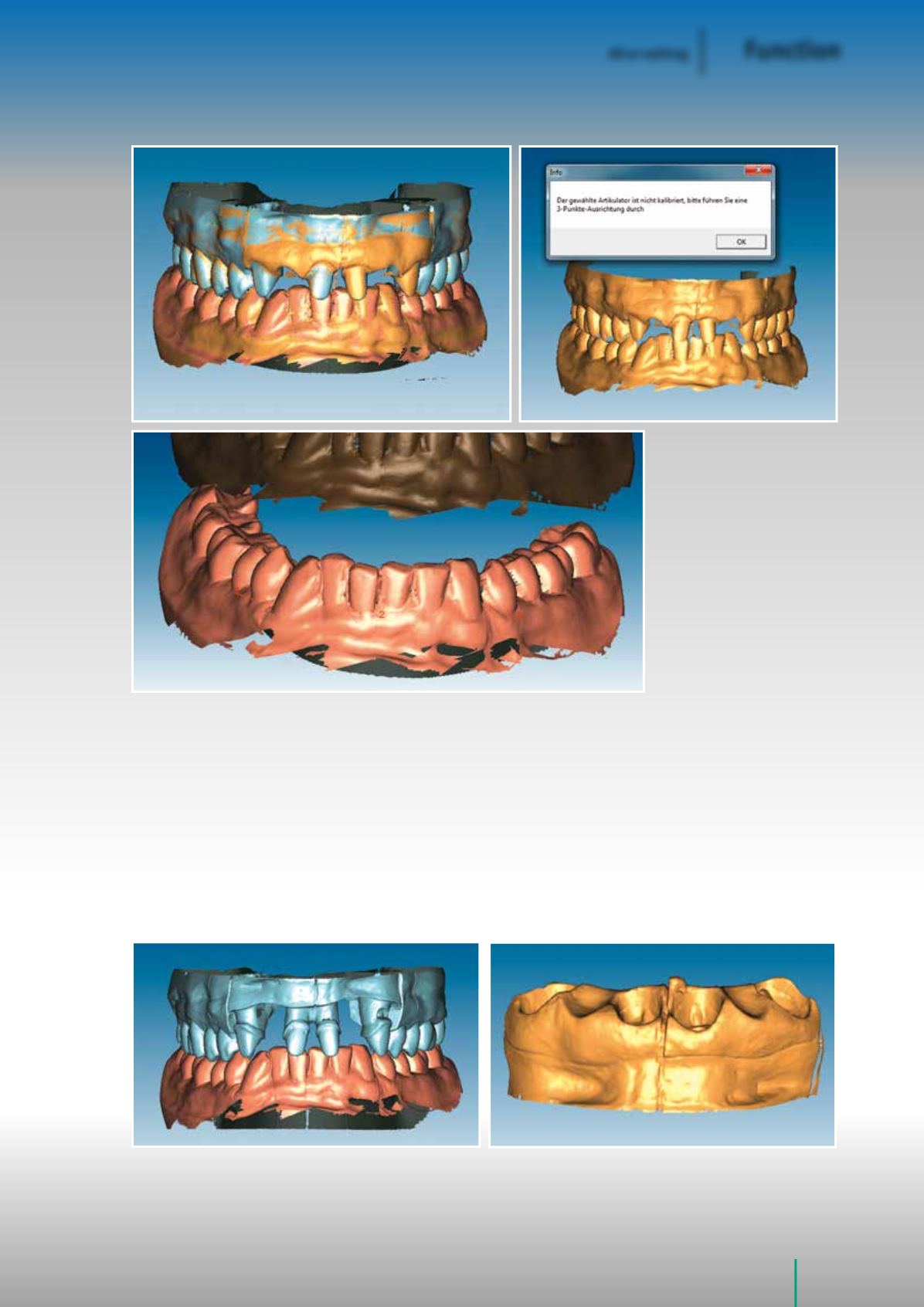

e Fig. 14 Occlusal align-
ment of the upper and lower
model in the relationship
process for the buccal scan
e Fig. 14a Calibration of the
virtual articulator in the scan
process using three-point
alignment
e Fig. 14b In the first step
three points are defined in
the lower model that are
also found on the buccal
scan – the same procedure is
then performed with the
upper model
e Fig. 15 Matched scan data of upper and
lower after three-point alignment
e Fig. 16 Completed matched
gingival mask
Fig. 14b
Fig. 15 Fig. 16
Fig. 14 Fig. 14a
